SystemTaskList Class Reference

#include <SystemTaskList.h>

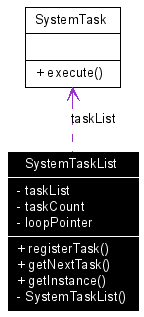

Collaboration diagram for SystemTaskList:

[legend]List of all members.

---

Detailed Description

This class implements a static container that essentially collects SystemTasks so that the main loop can invoke each task in a round robin fashion.

System level tasks can be added in the board support package, and should not be added anywhere else.

The SystemTaskList is a singleton pattern object, since only one can exist in the system at any time.

Public Types
enum	Status {   OK,   TOO_MANY_TASKS,   FAILED }
	An enumeration defining the results of methods included in the SystemTaskList class. More...
Public Member Functions
Status	registerTask (SystemTask &task)
	Register a system task with the master list of tasks.
Status	getNextTask (SystemTask **task)
	Returns the next task in the list.
Static Public Member Functions
static SystemTaskList &	getInstance ()
	A static method to get the one and only instance of the SystemTaskList.
Private Member Functions
	SystemTaskList ()
	Constructor.
Private Attributes
SystemTask *	taskList [Constants::TOTAL_TASKS]
int	taskCount
int	loopPointer

---

Member Enumeration Documentation

enum SystemTaskList::Status

An enumeration defining the results of methods included in the SystemTaskList class. Enumerator: OK  Success. TOO_MANY_TASKS  Too many tasks, consider updating the TOTAL_TASKS in Constants. FAILED  Generic Failure.

---

Constructor & Destructor Documentation

SystemTaskList::SystemTaskList (   )  [private]

Constructor.

---

Member Function Documentation

SystemTaskList & SystemTaskList::getInstance (   )  [static]

A static method to get the one and only instance of the SystemTaskList. Returns: SystemTaskList&

SystemTaskList::Status SystemTaskList::getNextTask (  SystemTask **  task  )

Returns the next task in the list. Will automatically roll the pointer over when reaching the end of the list. Essentially this function can be called repeatedly. Parameters: task  A pointer to a task reference. Return values: OK  upon success FAILED  when no tasks are registered Returns: Status

SystemTaskList::Status SystemTaskList::registerTask (  SystemTask &  task  )

Register a system task with the master list of tasks. Once a task is registered it will be executed round-robin within the main loop. If you are instead looking to register a feature you may want to look at the FeaturesList class instead. Parameters: task  The reference of an instance that should be included in the task list. Returns: A status code indicating the outcome. Return values: OK  successfully registered. TOO_MANY_TASKS  there aren't any remaining slots to add the task to.

---

Member Data Documentation

int SystemTaskList::loopPointer [private]

int SystemTaskList::taskCount [private]

SystemTask* SystemTaskList::taskList[Constants::TOTAL_TASKS] [private]

---

The documentation for this class was generated from the following files:

• SystemTaskList.h
• SystemTaskList.cpp

---
